Toby Smith

Goertzel Algorithm

9th September 2013

I’ve always wondered how complicated it would be to write the code that listens to the numbers you dial on your phone, and works out what numbers you pressed.
I often enter my credit card details over the phone, and think: “If someone had a good enough microphone to record the sounds, they could probably get my information!”

The fancy name for this is: Dual-tone multi-frequency signalling. When you press the buttons, two sine waves are generated with different frequencies. The receiver then has to measure these two frequencies and can work out what number you’ve pressed. I do love the similarity of this with formants (the way we create the different vowels sounds).

Whilst an FFT would easily do the trick, after a bit of research, it’s obvious that the most common algorithm to use is the Goertzel algorithm.
My time pocket principals say I should have just done an FFT and been done with it. The point here wasn’t to get a working decoder, but to understand how it is done, and to actually write some code that I can have.

I decided to work in scilab. I was tempted by C/C++, but I fancied learning a bit more about scilab (and not fiddling with audio libraries).

I created a couple of simple functions to generate some pure “tones” to test the algorithm, as well as adding noise, and gaps.

There’s plenty of examples of the Goertzel code out there. I started off doing different overlapping partitions to sample the audio, but in the end took a far simpler approach.
I’m not exactly satisfied with the speed, or with the way I’ve implemented the divisions. Ironically the first time I wrote it was probably a better method, but the second is definitely faster. So I certainly made some mistakes. Creating a matrix for all the frequencies at all the sample points probably was a bit silly… but I ran out of time.

In addition to the Goertzel I looked at dealing with noise, silence and series of numbers. The algorithm will sample the frequencies (by default) every 0.05 seconds, and will adjust to the sample rate of the audio data. If there isn’t a strong signal, then it will assume there’s no number being pressed. If the value is the same as the previous check, no new number is written out.

I tested it by recording my pressing buttons on a phone, and it actually worked out great! I was quite surprised.
All in all a good way to spend a few hours!

SciLab code here:
(I would imagine it would be fairly easy to port to Matlab).

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
// This creates an array of the goertzel's response.
// Use: data x, at frequency f, sampled at points defined by at.
function [res] = goertzelArr(x, f, sampleRate, at)
    a=0;
    b=0;
    c=0;

    val = 2 * cos(2 * %pi * f / sampleRate);
    res = zeros(1,length(at));

    nextAt = 1;
    nextTrig = at(1);

    for i = 1:length(x),
        a = val * b - c + x(i);
        c = b;
        b = a;

        if i == nextTrig then
            res(nextAt) = (b*b + c*c - b*c*val);
            nextAt = nextAt + 1;
            b = 0;
            c = 0;
            if (nextAt > length(at) ) then
                return;
            end
            nextTrig = at(nextAt);
        end
    end
endfunction

// Main decoding function.
// Call with: evalTone(AUDIO_VECTOR, SAMPLE_RATE_OF_AUDIO [, time between samples])
function [t] = evalToneAt(x,sampleRate,timebetween)
    // Default time between checks is 0.05
    [out, inp] = argn(0);
    if inp < 3 then, timebetween = 0.05, end

    // Work out how many samples per check, and build array
    spaceSamples = timebetween * sampleRate;
    at = [spaceSamples:spaceSamples:length(x)];

    // Relevant frequencies for number
    checkComb = [1209, 1336, 1477, 1633,697, 770, 852, 941];
    chars = ['1','2','3','A','4','5','6','B','7','8','9','C','*','0','#','D'];

    // Create results array
    r = zeros(8,length(at));

    // Get results from goertzels
    for i=1:8
        r(i,:) = goertzelArr(x,checkComb(i),sampleRate,at);
    end

    lastVal = 0;
    t = '';
    // Loop through measurements
    for i=1:length(at)
        // Find best tone pair
        col = 1;
        row = 1;
        colval = r(1,i);
        rowval = r(5,i);
        for j=2:4
            if (r(j,i) > colval) then
                colval = r(j,i);
                col = j;
            end
            if (r(j+4,i) > rowval) then
                rowval = r(j+4,i);
                row = j;
            end
        end
        // This is the best candidate tone pair
        v = col + (row - 1) * 4;

        // If the magnitude doesn't satisfy contraints ignore.
        if (colval < spaceSamples | rowval < spaceSamples) then
            lastVal = 0;
            continue;
        end

        // If this is same tone as before. Ignore
        if (v ~= lastVal) then
            t = strcat([t,chars(v)]);
            lastVal = v;
        end
    end
endfunction

These functions create the sample tones:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
// Assistant function to create the tones
function [x] = soundChar(c, len, sampleRate)

    [out, inp] = argn(0);
    if inp < 3 then, sampleRate = 22050, end
    if inp < 2 then, len = 0.5, end

    checkCol = [1209, 1336, 1477, 1633];
    checkRow = [697, 770, 852, 941];

    chars = ['1','2','3','A';'4','5','6','B';'7','8','9','C';'*','0','#','D'];

    sig1 = 0;
    sig2 = 0;

    for i = 1:size(chars,1)
        for j = 1:size(chars,2)
            if (chars(i,j) == c) then
                sig2 = checkRow(i);
                sig1 = checkCol(j);
            end
        end
    end

    v1 = len * 2 * %pi;
    v2 = len * sampleRate;

    s1 = sin(linspace(0, v1*sig1, v2));
    s2 = sin(linspace(0, v1*sig2, v2));

    x = s1 + s2;

endfunction

// Create a tone sequence eg: genTone('0123456789#*ABCD',0.2,44100,0.05);
// Will return an audio vector with each tone playing for 0.2 seconds,
// with gaps in between of 0.05 seconds at a sample rate of 44100
function [x] = genTone(s, len, sampleRate, gap)
    [out, inp] = argn(0);
    if inp < 4 then, gap = 0.2, end
    if inp < 3 then, sampleRate = 22050, end
    if inp < 2 then, len = 0.5, end

    x = [];
    for i = 1:length(s)
        x = [x,soundChar(part(s,i), len, sampleRate),zeros(1,round(gap*sampleRate))];
    end

endfunction

New approach to Time Management – Time Pockets

9th September 2013

I’ve been trying a variety of Project/Time Management techniques over the past months to try and improve my efficiency: work breakdown structures, schedules, pomodoro etc… None of them seemed to really gel with me, personally.
In addition I’ve always had a massive list of other tasks that I wanted to get done/experiment with, and just never got round to it. Which is mildly depressing.

What’s been working so far is time pockets. At the moment I’m using the work days, and the weekend as two distinct pockets. But it might be a good idea to subdivide these further.

It works thus:

  1. Pick a project/part of project to do, and an appropriately sized pocket.
  2. Adjacent pockets should involve doing completely different work.
  3. If the work doesn’t get done in that pocket: tough. You can’t work on it again, until a lot later.

So far it’s been really working! It acts as a great “push” to get things completed, and stops work from getting stale.
I’ve completed the redesign of the site and did some experimentation with some audio stuff.

So far it’s really improving my abilities to:
estimate completion times, focus on the important work first, boil down and simplify a task/project to the essentials.

The feeling of accomplishment of meeting a set deadline (and more importantly – avoiding the punishment of failure) is better than I was expecting. It will be interesting to see how I react if/when I DO fail.

New Design

7th September 2013

Welcome to the new and improved THJSmith.com!

This has been something I’ve been wanting to do for a long time, but I finally decided to put a few days aside and do a custom design for this site.
Funnily enough the initial “design point” ended up getting scrapped, and I would like to find a better way to utilise the colour series throughout the body.

I enjoyed getting to to flex my design, CSS and javascript muscles on a smaller project.

Anyway, I hope you find it suitably unsettling?
Whatchu think?

How to bodge an autocue

4th August 2013

Autocues are really quite simple things; consisting of a camera, a screen, and a piece of glass. They allow you to read off your words, whilst looking straight at the camera.

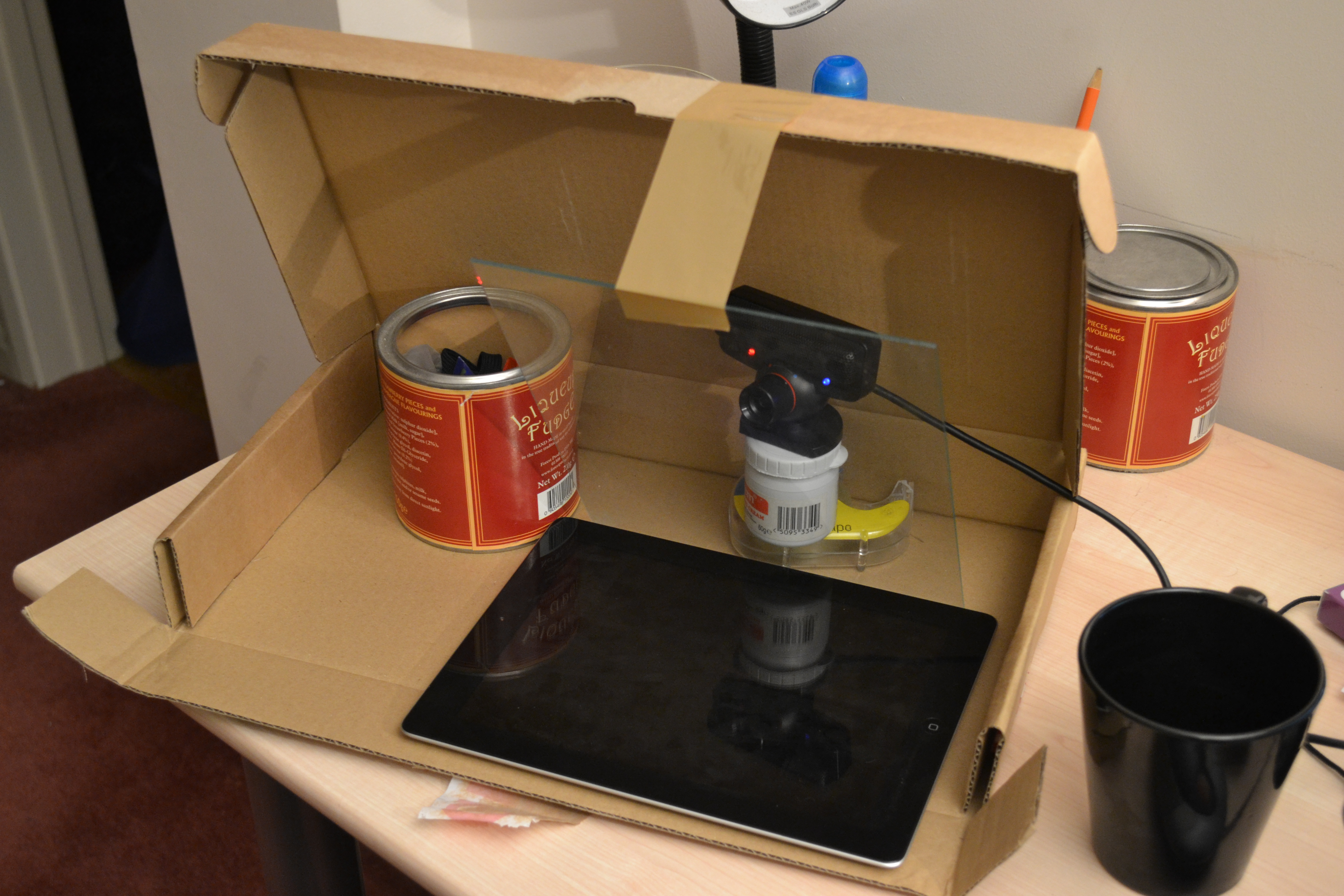

Adhoc Autocue

I cobbled mine together from a PS:Eye, piece of glass from a photo-frame, and an iPad.
The most irritating thing was getting the text to display. I didn’t check for an app that would scroll the text. In the end I just had a static image (just rememeber to flip it about the y-axis).

The construction was just from junk I had on my desk. Sometimes a little mess can be helpful (that’s my excuse).

It worked, but wasn’t great. The text I was reading was very small (no scrolling), so you can see my eyes scanning across. Having bigger, scrolling text would have been a bonus. Being further from the set up with the camera zoomed in more would probably mitigate the “scanning eyes” too.

All in all it was a lot of fun to build but it’s probably easier to just learn your lines!

Javascript Arguments

25th June 2013

It’s always tempting to optimise code before you need to. With Javascript I think it’s basically worth following some best practises as you go along, and then doing the “proper” thing of working out where the big holes are.
The issue I have with NOT considering speed as you go through, is you end up with death by a thousand cuts. Internet users (Netizens?) are incredible fickle about speed.

So I’ve been taking reasonable efforts to make the code work fast. I recently stumbled across an article mentioning that using “arguments” was bad.
Specifically that:

function (a) {
return a;
}

is considerably better than:

function () {
return arguments[0];
}

Now, I only use the arguments variable if I want to work with a variable (and potentially large) number of arguments. Utility functions and what have you. The alternative to the above would be to assume one parameter that was a list. Like so:

function (args) {
return args[0];
}

The cost here is building a list each time you call the function. I wanted to see what’s actually faster here and so I extended a JSPerf to examine:
http://jsperf.com/named-arguments-vs-arguments-array/2

Moral of the story: if you want to use variable number of arguments in utility functions the use of the arguments variable is better than building a list.

Homemade udon

4th June 2013

Every-now-and-then I think it’s worth putting a little extra work into dinner.

In “Space Brothers”, they get to a point where they start making some udon noodles. Mutta-kun says it’s easy, but just takes some time. Sounds like a plan!

So, off to the Japanese shop to get some stock ingredients (kombu etc.). In the end I just got a bottle of pre-prepared stock (it was cheaper), and some Japanese grape soda. The grape soda is irrelevant. It’s just delicious. If you get the opportunity to try some, definitely do so. (Calpis/Calpico too!).

Made the noodles according to various recipes online. (I used a mixture of 00 and plain flower). The dough was a lot more satisfying to knead than bread dough. Wrapping the dough in plastic, and then in towels to then stand on it just ended with the plastic tearing and the dough touching the towels. As I didn’t have proper zip-lock bags, I just muscled it to the right consistency.

Toasted sesame, mirin, soya-sauce, pak-choi, mushroom, carrot, spring onions, boiled egg and home made noodles: makes a delicious dinner.

Even better was the “sashimi” made from the excess noodle dough the next day.

I bought nori, but forgot to add it. Oh well. I guess that’s for next time eh! 🙂

Definitely worth the effort, and really not as hard as you might imagine. Biggest issue was slicing the noodles, as I didn’t really have any sharp/fancy knives. I bet you’d have an easier time of it! Highly recommended. Give it a go!

Udon Soup
